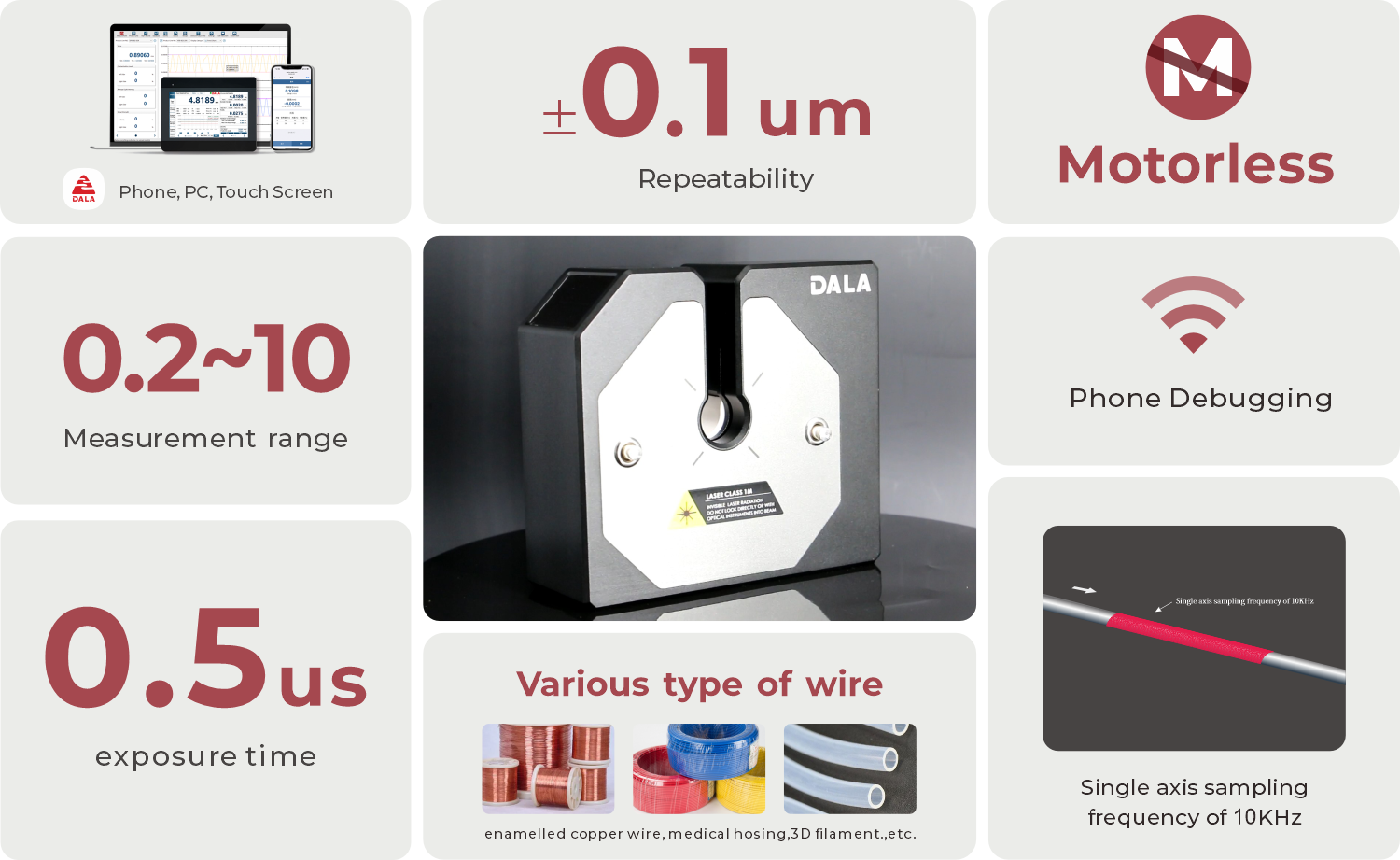

F2010-K is a multi-axis laser micrometer independently developed by DALA, based on the principles of laser diffraction. It is designed to provide high-precision, low-cost, and highly reliable quality monitoring solutions for industries such as cables, wires, and pipes. This device can measure diameter and ovality in real-time, ensuring consistent product quality.
F2010-K features a unique structural and system design, enabling it to operate reliably and stably in complex and harsh environments. It can easily integrate with other system equipment, providing better support for the automation of production lines.
Single axis sampling frequency of 10 KHz

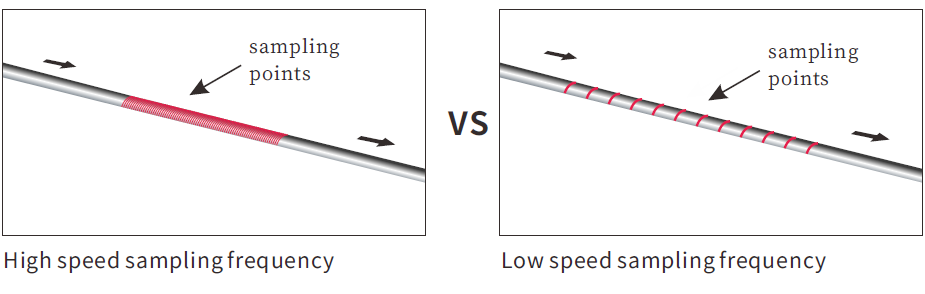

Sampling frequency can reach to 10KHz due to no motor running speed limitation,which enables to get more information of the object under measurement.

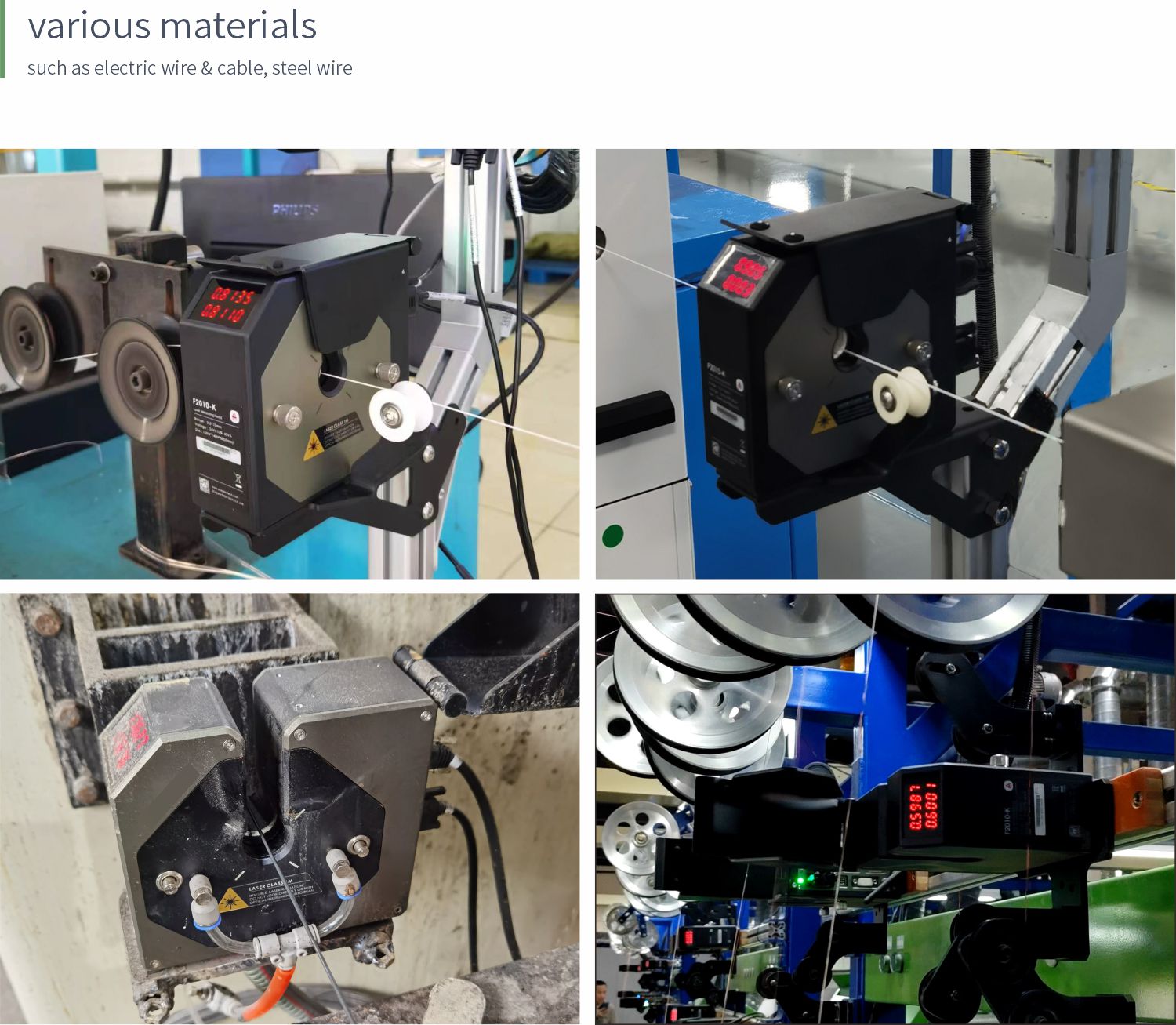

Applications
Touch Screen,Computer,Cellphone

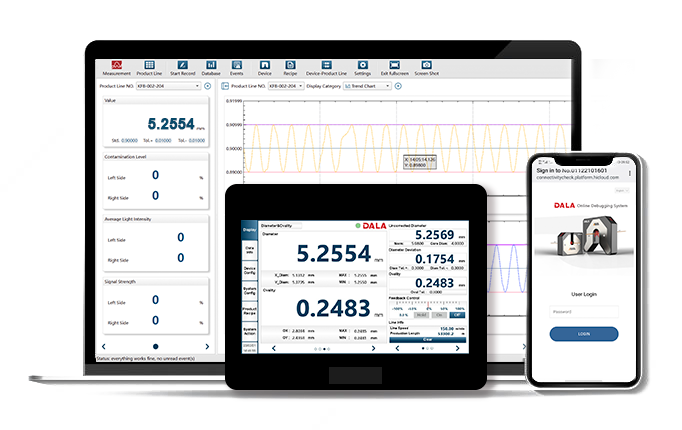

Supports multiple methods for data management and viewing, allowing users to choose the most suitable approach according to their needs.
Technical Specification
| Model | F2010-K |
| Axis | 2-axis |
| Measurement data | diameter, ovality, lump and necks |
| Frequency | 10KHz/axis |
| Measurement range | 0.2~10mm |
| Repeatability(1) | ±0.1μm |
| Accuracy(2) | ±(0.0005+0.01%*D)mm |
| Min defect height | 0.01mm |
| Min defect length(3) | 0.2mm(wire speed120m/min)
0.8mm(wire speed500m/min) |
| Size | 155*140*58mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port | Standard:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT,PI feedback control(4) |
| Data colletion & analysis | available (option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Transparent mode | available |
Note:
(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area
(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area
(3) set defect measurement average time as 0ms, the minimum defect length which cannot be missed at the measurable area
(4) PI feedback control is option, but must order at placing order
